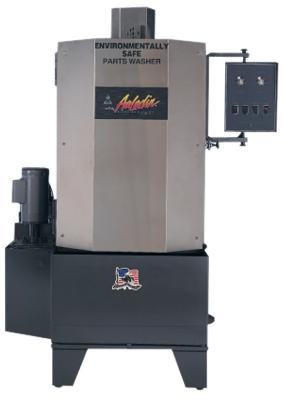

Automatic Parts Washer Models 2085E & 2085TE
Features Include:
- Dual zone quick service filters with slide out fine debris screen and small debris catch basket
- 85 gallon water capacity
- 3hp seal-less pump
- 230 volt 3 phase
- 10kw heater (230v 1ph or 3ph)
- 10 gauge steel
- S.S. air shield (door cover)
- Seal-less ez-load door
- Steel oil skimmer
- Dry-floor (waste water) evaporator
- Power vent
- Small parts soaking system
- Large removable basket
- 1,500 lb. load capacity
- 41" load height
- 28" turn table
- 72 - 0° spray jets
- 45" L x 61" W x 87" H
- 1120 lbs. shipping weight
- ETL & C-ETL Listed
| Model | 2085E | 2085TE |
| Water Capacity (Gallons) | 85 | 85 |
| Electrical - Motor | 3HP | 5HP |
| Electrical - Voltage | 230 | 230 |
| Electrical - Phase | 1 | 3 |
| Heaters - 230V 1 PH | STD | OPT |
| Heaters - Kilowatts | 10KW | 10KW |
| Heaters - Fused for AMP Draw | 60 | 60 |
| 230V 3PH | OPT | STD |
| Kilowatts | 12KW | 12KW |
| Fused for AMP Draw | 40 | 40 |
| 480V 3 Ph | OPT | OPT |
| Kilowatts | 12KW | 12KW |
| Fused for AMP Draw | 25 | 25 |
| Why Worry About It | OPT | OPT |
| Gauge Steel | 10 | 10 |
| Stainless Steel Air Shield | STD | STD |
| Seal-less Door | STD | STD |
| Oil Skimmer | STD | STD |
| Dry Floor Waste Water | N/A | STD |
| Disposal System Large Basket | STD | STD |
| NG / LP (Not ETL & CETL Listed) | OPT | OPT |
| Load Capacity (Pounds) | 1,500 | 1,500 |
| Load Height (Inches) | 41" | 51" |
| Turntable Diameter (inches) | 28" | 28" |
| Number of 0° Spray Jets | 72 | 85 |
| Dimensions (LxWxH) | 42" x 61" x 89" | 42" x 61" x 97" |
| Shipping Weight | 1120 lbs. | 1250 lbs. |
